Model:
IND-AH-UVC-DF-24-SF-PND-24VDC
SKU:
IND-AH-UVC-DF-24-SF-PND-24VDC
Availability:
In Stock
Documents:
Spec Sheet
$4,165.89
Estimated price. Final price and availability are subject to confirmation. Contact our sales team for a current quote.
  0 reviews

Product Overview

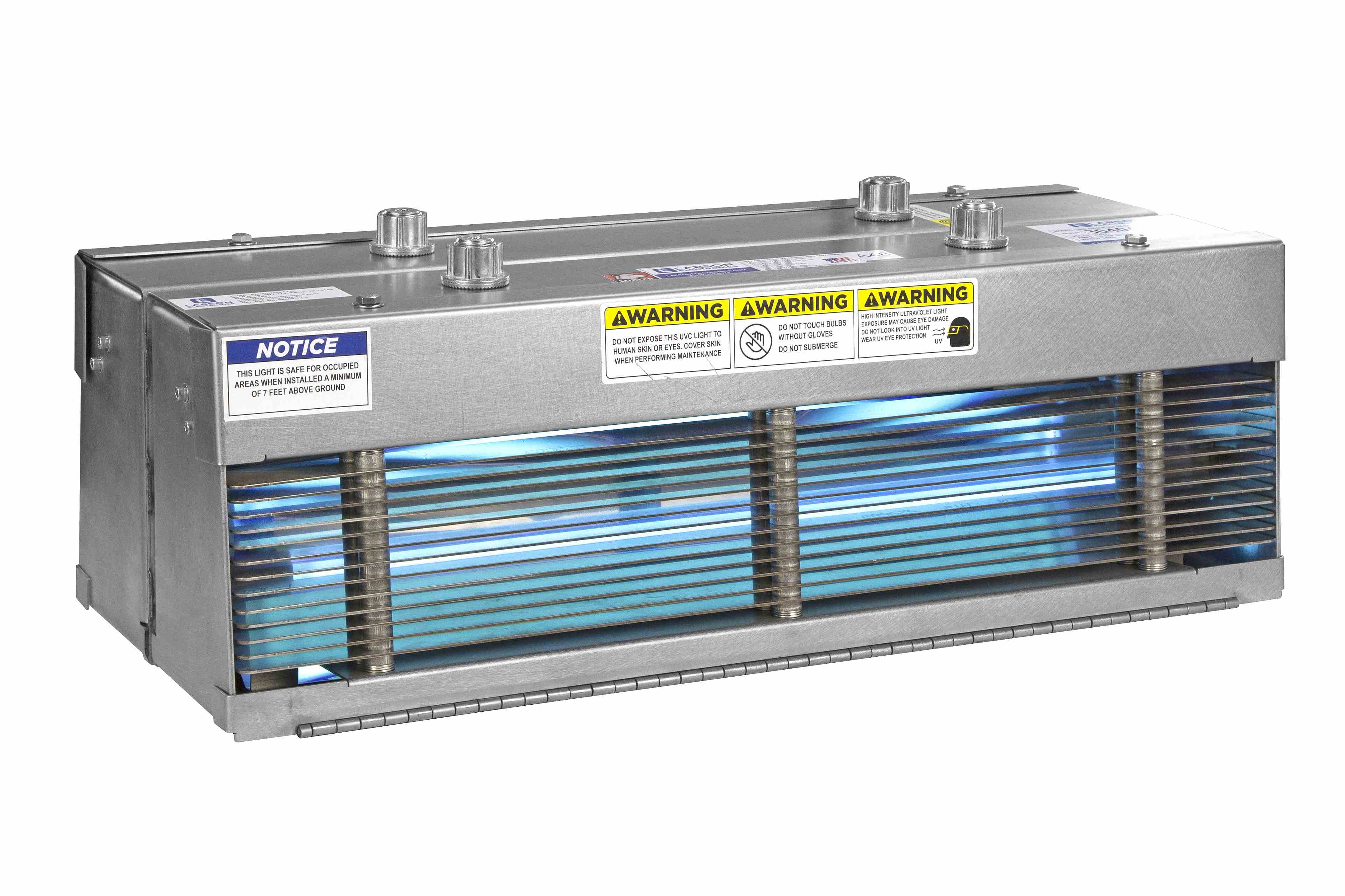

Indirect UV Air Disinfection Dual Lamp Fixture - UV-C - Destroys Airborne Bacteria & Viruses - 24V DC - 15W Total UV Output - Pendant Mount is a product intended for professional commercial and industrial applications.

Key Specifications

  • Construction: The enclosure of the IND-AH-UVC-DF-24-SF-PND-24VDC is built from 304 stainless steel. A series of front mounted louvers protects people from harmful UV light as well as maximizing the amount of UV rays that are projected across the upper air of the room. A parabolic reflectors with specular aluminum inserts directs as much light from the bulb out of the unit as possible.
  • Mounting: The IND-AH-UVC-DF-24-SF-PND-24VDC is designed to be pendant mounted. Two conduit holes on the top of the enclosure allow for pendant mounting from a flat and level surface. The surface mount pendant adaptor plate and 1/2" conduit hubs are included. The mounting surface must be able to support 32 lb of weight.
  • Note on Environment: Sunlight and visible light fixtures do not impact the effectiveness of the disinfecting on this UVC sanitation product. Metal halide, high pressure sodium, fluorescent, and LED light fixtures can be left on. The UV radiation emitted from this product is not disrupted by any type of lighting in the environment. Put simply, NO it DOES NOT need to be dark in the area you plan to disinfect. The UV radiation is harmful to the eyes and skin, and that is why you should not be in the area while it is in operation. Please see user manual for additional safety information.
  • Applications: This ultraviolet indirect UV air disinfection unit can be used to continuously disinfect air of mold, allergens, airborne bacteria, viruses, and germs. The IND-AH-UVC-DF-24-SF-PND-24VDC is ideal for use in restaurants, hospitals, clinics, laboratories, nursing homes, schools, food processing facilities, office buildings, conference rooms, universities, clean rooms, and many more.

This item is grouped with UVC Air Sanitation Lights for Occupied Areas.

Before ordering: Verify ratings, dimensions, compatibility, and installation requirements before ordering.

Specifications

Applications
This ultraviolet indirect UV air disinfection unit can be used to continuously disinfect air of mold, allergens, airborne bacteria, viruses, and germs. The IND-AH-UVC-DF-24-SF-PND-24VDC is ideal for use in restaurants, hospitals, clinics, laboratories, nursing homes, schools, food processing facilities, office buildings, conference rooms, universities, clean rooms, and many more.
Construction
The enclosure of the IND-AH-UVC-DF-24-SF-PND-24VDC is built from 304 stainless steel. A series of front mounted louvers protects people from harmful UV light as well as maximizing the amount of UV rays that are projected across the upper air of the room. A parabolic reflectors with specular aluminum inserts directs as much light from the bulb out of the unit as possible.
Mounting
The IND-AH-UVC-DF-24-SF-PND-24VDC is designed to be pendant mounted. Two conduit holes on the top of the enclosure allow for pendant mounting from a flat and level surface. The surface mount pendant adaptor plate and 1/2" conduit hubs are included. The mounting surface must be able to support 32 lb of weight.
Note on Environment
Sunlight and visible light fixtures do not impact the effectiveness of the disinfecting on this UVC sanitation product. Metal halide, high pressure sodium, fluorescent, and LED light fixtures can be left on. The UV radiation emitted from this product is not disrupted by any type of lighting in the environment. Put simply, NO it DOES NOT need to be dark in the area you plan to disinfect. The UV radiation is harmful to the eyes and skin, and that is why you should not be in the area while it is in operation. Please see user manual for additional safety information.
Reviews: 0

There are no reviews for this product.

Questions: 0

No questions about this product.

CEC Certificate 200.88 KB
NEC Certificate 198.33 KB
MSDS 954.18 KB
Catalog Page 1.52 MB
Beam Information 259.14 KB
Certificate 1 226.05 KB
Eye Safety 1.02 MB
Certificate 4 327.63 KB
Spec Sheet 550.92 KB
Lighting Facts 1.41 MB
Manual 2.97 MB
Layout 1 1.08 MB
Lighting Facts 1.41 MB
