Infrared LED Military Driving Lights - High/Low Beams - 9-42VDC - Covert Headlights - Dual Switches

Product Overview

Infrared LED Military Driving Lights - High/Low Beams - 9-42VDC - Covert Headlights - Dual Switches is a product intended for professional commercial and industrial applications.

Key Specifications

• Heat Management: Heat is the single largest factor in premature LED failure and color shifting. As a result, many manufacturers reduce the output of their LEDs to reduce the amount of heat produced. These LED light bars utilize an extruded aluminum housing that incorporates an advanced heat radiating fin design which dissipates heat efficiently to produce the maximum amount of power and longevity from the integrated Edison Edixeon® Emitters. The end result is more light and longer LED life with higher average lumen maintenance after 50,000 hours.
• Voltage Control: These units are able to monitor and adjust input current to maintain the correct LED voltage levels regardless of input levels across a specific range. These LEDLB series light bars can operate on current ranging from 9 to 42VDC without any modifications necessary as a result. This multi-voltage capability makes these units ideal for mobile and standalone applications such as those found on commercial boats, heavy equipment and vehicles where power systems don’t always operate with 12 volts and external generators, transformers or inverters are impractical.

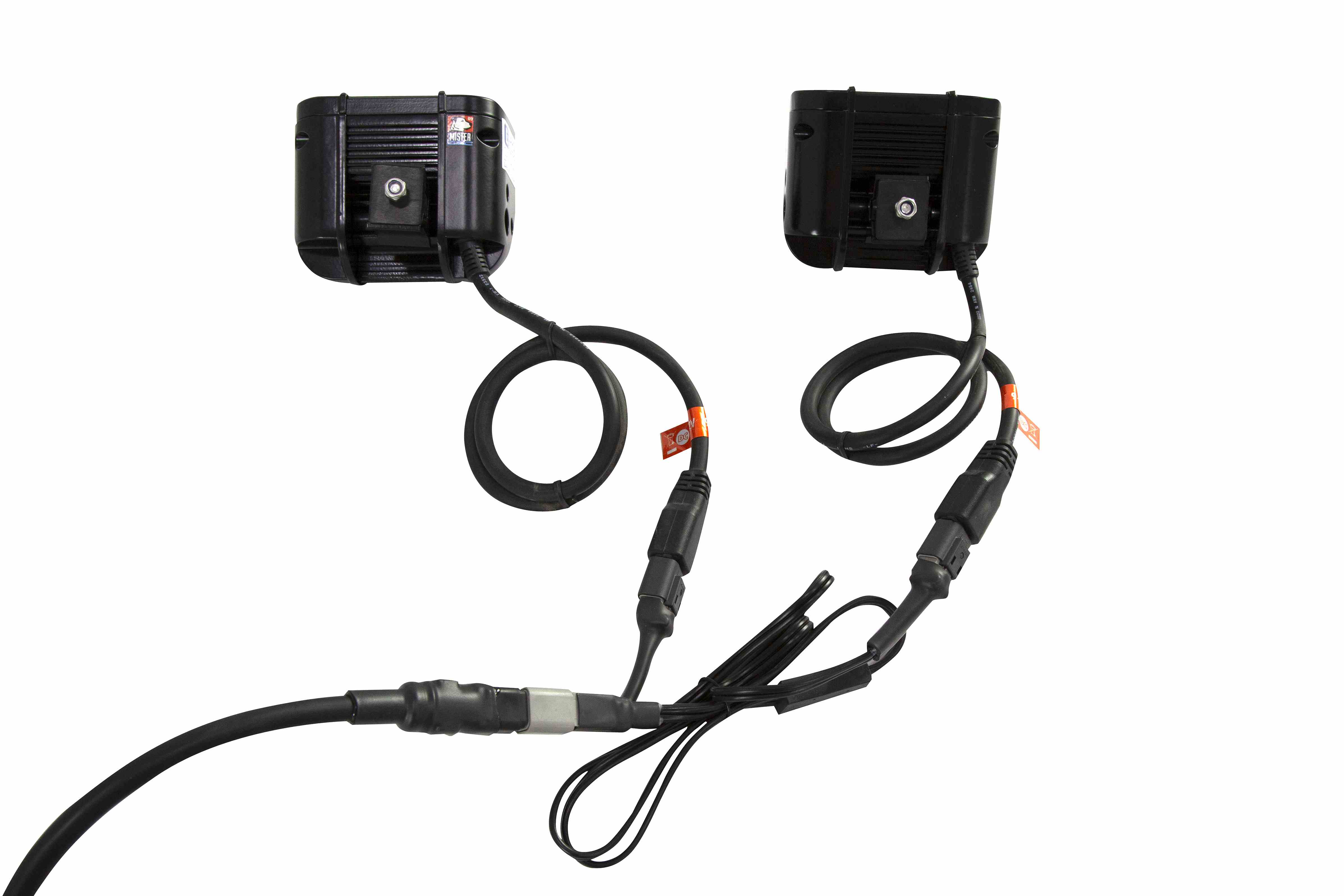

• Wiring: Most Larson Electronics LEDLB, LEDP3W, LEDP10W, and LED10W series LED spotlights and floodlights are terminated with a Deutsch IPD / LADD DT04-2P connector. The mating connector plug is DT06-2S. This set of covert infrared headlights ships with two wiring harnesses, one per light. The wiring harness features an inline switch and allows operators to power on/off each light individually. A Y-splitter harness can be purchases separately to operate two lights from a single switch.
• Measurements: Taken at 5 feet from the lens.

This item is grouped with Military Spotlights 24V.

Before ordering: Verify ratings, dimensions, compatibility, and installation requirements before ordering.
