Spec Sheet
$224.04
Estimated price. Final price and availability are subject to confirmation. Contact our sales team for a current quote.

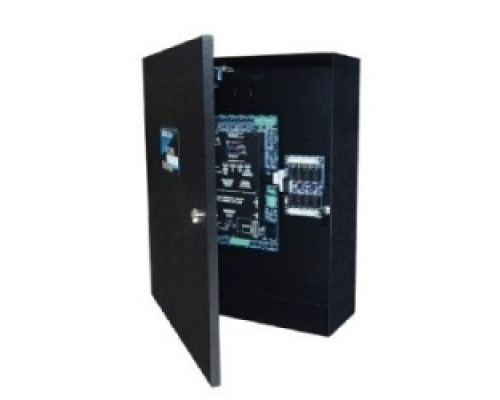

The KEYSCAN CA250 is a 2-reader access control panel built to integrate into a scalable Keyscan system. It supports up to 32,000 cards and includes two card reader or keypad inputs, along with two auxiliary outputs and eight auxiliary inputs for expanded system control.
This panel features dual multi-threaded processors to maintain full operation during system downloads and supports various communication methods including TCP/IP, LAN/WAN, Internet, and RS485. It uses a network appliance-based architecture with configurable reader settings compatible with Wiegand protocols.
- Includes CA250B PC109X main board, OCB8 (PC110X) relay board, DPS-15 power supply, and black metal enclosure
- Requires two 16 V AC transformers (37 or 40 VA) and one 12 V 7Ah battery
Technical
Environmental
INDOOR
Input Voltage
16.5 VAC
Interface
RS232
Mounting
SURFACE MOUNT NO ELEC BOX
Number of Readers
2
Number of Users
MORE THAN 2000
Output Voltage
12 VOLTS DC
Product Type
IP HARDWIRED CONTROLLER
Sales Category
ELECTRIC SYSTEM CONTROLLER
Reviews: 0
There are no reviews for this product.
Questions: 0
No questions about this product.
Spec Sheet 258.42 KB
