Model:
MTSTR-MV-3P-4160V-1247HP-155A-N4X-M2SKU:
MTSTR-MV-3P-4160V-1247HP-155A-N4X-M2Availability:
In StockDocuments:
Spec Sheet
$91,842.15
Estimated price. Final price and availability are subject to confirmation. Contact our sales team for a current quote.
Product Overview

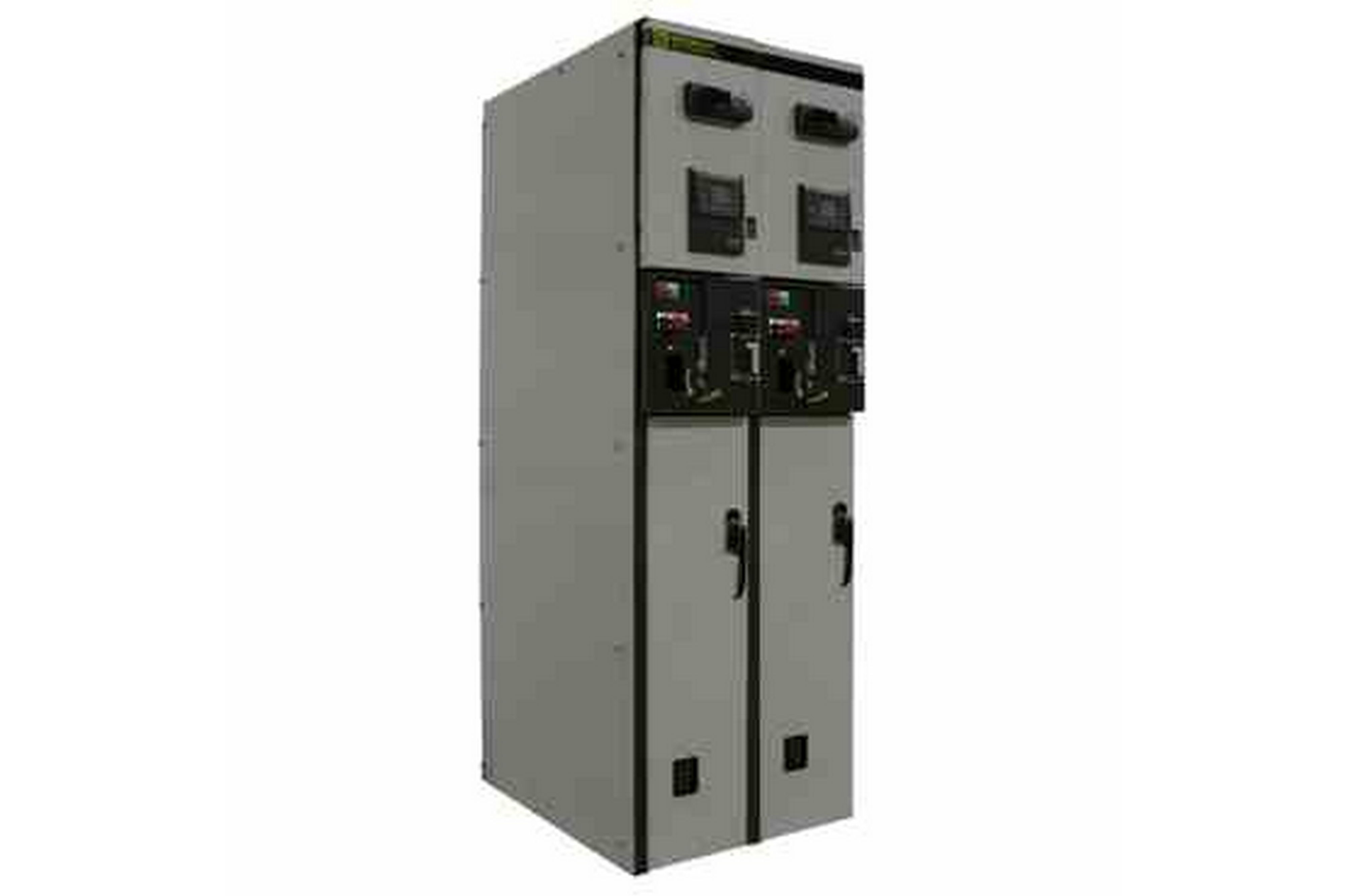

Medium Voltage Soft Starter - 155A - 4160V 3PH 60Hz - 929.9 kW - NEMA 4X is a product intended for professional commercial and industrial applications.
Key Specifications
- Unit Type: Medium Voltage Soft Starter
- Load Type: Three-phase medium voltage squirrel cage asynchronous and synchronous motors
- Dimensions: 31.5" x 59" x 90.5"
- Weight: 1,873.93 lbs
- Rated Power: 1247 HP (≈ 929.9 kW)
- Nominal Voltage: 4160V
- Rated Voltage: 10 kV ±15%
- BIL Rating: 60 kV
- Short-Circuit Withstand: 63 kA for 1 second
- Phase: Three-Phase
This item is grouped with Latest Lights and Products.
Before ordering: Verify ratings, dimensions, compatibility, and installation requirements before ordering.
Specifications
BIL Rating
60 kV
Bypass Contactor
Vacuum Bypass Contactor, direct-starting capable
Cabinet Color
RAL7035
Cabinet Rating
NEMA 4X
Communication Interface
RS485
Control Circuit Power Supply
Included, 115V ± 10%, single phase, 50/60 Hz
Control Power Transformer
Included, 2 kVA
Current Limiting Multiple
100%~500% adjustable
Current Rating (FLA)
155A
Dimensions
31.5" x 59" x 90.5"
Elevation
0-4,920 Feet w/o Derating
Enclosure Type
Indoor, Metal-Clad (Arc-Resistant option available)
Fault Record
Records the latest 15 fault information
Frequency
60 Hz ± 2 Hz
Humidity
5-95% RH/NC
Keyboard
6 touch-sensitive membrane buttons
LCD Display
Included
Load Type
Three-phase medium voltage squirrel cage asynchronous and synchronous motors
Locked Rotor Current Rating (LRA)
1296A
Max. Inrush Current Rating (LRA)
755A
Metering
Included, 3-Ph Voltage/Current Meter
Mount
Floor Mount
Mutually Phase Sequence
Any
Nominal Voltage
4160V
Oil Pump Power Supply
Included, 460V, three phase, 60 Hz, w/ 7A, 60 Hz Fuse
Operating Temperature Range
0°C to +50°C with built-in space heaters
Power Bus
Silver-Plated Copper Bus
Protection
Phase loss protection (During starting or operation, disconnect any phase of the main power supply), Overcurrent protection (Adjustable setting: 20～500% I
Rated Power
1247 HP (≈ 929.9 kW)
Rated voltage
10 kV ±15%
Short-Circuit Withstand
63 kA for 1 second
Start Timeout
0~120S
Starting Frequency
1-6 times (hourly)
Status Indicators
LEDs (Power, Run, Alarm, Trip, Aux Relays)
Unit Type
Medium Voltage Soft Starter
Vibration
< 0.5G
Weight
1,873.93 lbs
Technical
Phase
Three-Phase
Cable Entry
Bottom Entry
Communication Protocol
Modbus
