Model:
MPD-CD1-TB-YT-0-YT-FZ-4.N04-M1SKU:
MPD-CD1-TB-YT-0-YT-FZ-4.N04-M1Availability:
In StockDocuments:
Spec Sheet
$5,376.64
Estimated price. Final price and availability are subject to confirmation. Contact our sales team for a current quote.
Product Overview

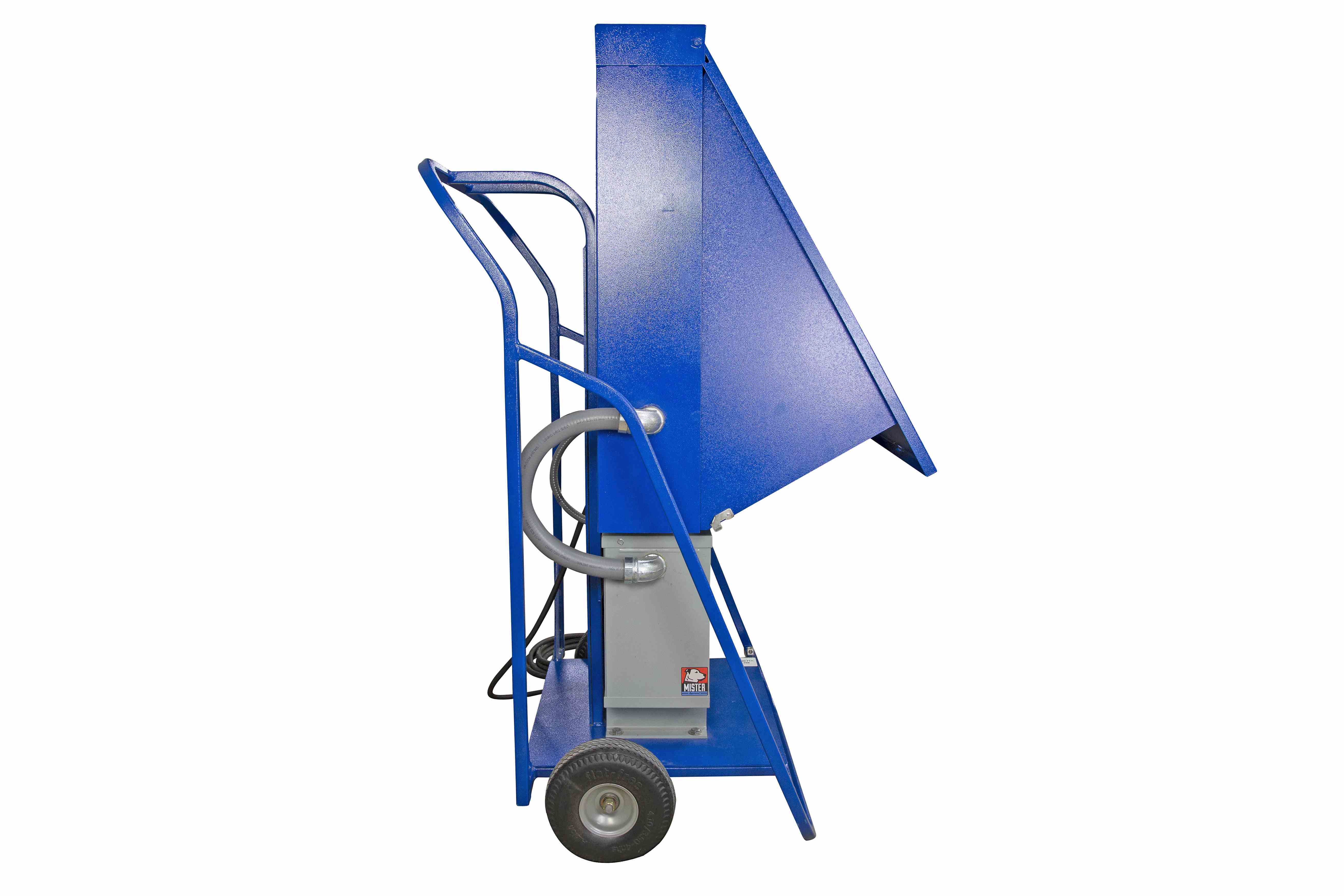

Mobile Power Distribution Panel - 208Y/120V 3PH - (4) 5-20R Duplex at Bottom - N1 is a product intended for professional commercial and industrial applications.
Key Specifications
- Wiring: The MPD-CD1-TB-YT-0-YT-FZ-4.N04-M1
- Power: The main load center is protected by a 50-amp load center with main breaker for circuit protection. The NEMA 1 50-amp, three-phase 208Y/120V main breaker panel contains four 20-amp 1-pole GFCI 125V breakers protecting four 20-amp 125V 5-20R duplex receptacles, as well as one 50-amp 2-pole 250V, one 30-amp 2-pole 250V, one 20-amp 2-pole 250V and twelve 20-amp 1-pole 125V breakers. The load center is mounted within the NEMA 1 enclosure.
- Applications: This power distribution system is NEMA 1 rated and ideal for indoor use and applications including but not limited to
- construction sites, plant maintenance, plant turnarounds, shows, exhibits, and shipyard operations.
This item is grouped with Power Distribution Panels with KVA Transformers.
Before ordering: Verify ratings, dimensions, compatibility, and installation requirements before ordering.
Specifications
Applications
This power distribution system is NEMA 1 rated and ideal for indoor use and applications including but not limited to; construction sites, plant maintenance, plant turnarounds, shows, exhibits, and shipyard operations.
Power
The main load center is protected by a 50-amp load center with main breaker for circuit protection. The NEMA 1 50-amp, three-phase 208Y/120V main breaker panel contains four 20-amp 1-pole GFCI 125V breakers protecting four 20-amp 125V 5-20R duplex receptacles, as well as one 50-amp 2-pole 250V, one 30-amp 2-pole 250V, one 20-amp 2-pole 250V and twelve 20-amp 1-pole 125V breakers. The load center is mounted within the NEMA 1 enclosure.
Technical
Wiring
The MPD-CD1-TB-YT-0-YT-FZ-4.N04-M1
Reviews: 0
There are no reviews for this product.
Questions: 0
No questions about this product.
NEC Certificate 147.59 KB
MSDS 124 KB
Ro HS Certificate 227.13 KB
Certificate 1 171.96 KB
Wiring Diagram 235.09 KB
ANSI Certificate 1 211.64 KB
CEC Certificate 144.34 KB
Spec Sheet 872.96 KB
Manual 546.17 KB
Catalog Page 523.8 KB
Certificate 5 85.03 KB
CE Certificate 202.48 KB
Shipping Time Map 424.5 KB
