Product Overview

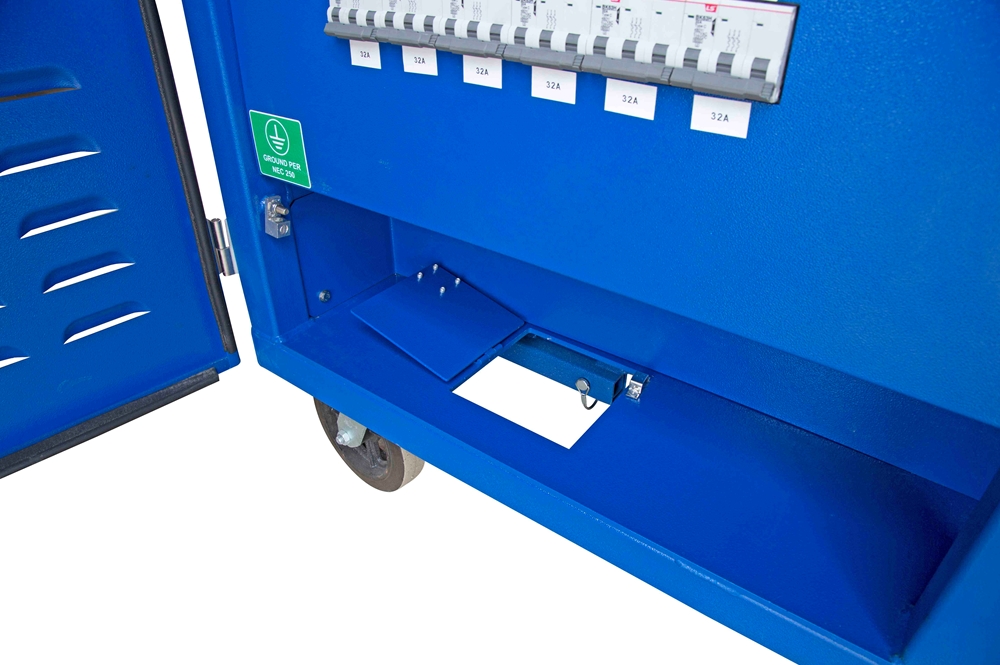

Power Distribution System - 208Y Primary - 45KVA transformer - 400V Secondary Voltage - 125A Panel is a product intended for professional commercial and industrial applications.
Key Specifications
- Line In: 208Y AC Three Phase
- Line Out: 400V AC
- Disconnect: 200-amp (fused at 150 amps)
- Transformer: 45 KVA - 208Y to 400V Nema 3R
- Secondary Breaker Enclosure: 125-amp Nema 3R
- Secondary Receptacles: 125-amp HBL5125R6W
- FormFactor: Powder coated, steel cube with skid pockets and top pick eye
- Mobility: (2) locking 8” polyurethane castes & (2) swiveling 8” polyurethane casters
- Dimensions: 36"-W x 30"-D x 56"-H
- Weight: ~450lbs
This item is grouped with 45-55KVA Portable Power Distribution Systems.
Before ordering: Verify ratings, dimensions, compatibility, and installation requirements before ordering.
Specifications
Dimensions
36"-W x 30"-D x 56"-H
Disconnect
200-amp (fused at 150 amps)
Features
Contact us for special requirements
FormFactor
Powder coated, steel cube with skid pockets and top pick eye
Line In
208Y AC Three Phase
Line Out
400V AC
Max Primary OCP
65A @ 400V
Max Secondary OCP
120A @ 208Y
Mobility
(2) locking 8” polyurethane castes & (2) swiveling 8” polyurethane casters
Secondary Breaker Enclosure
125-amp Nema 3R
Secondary Receptacles
125-amp HBL5125R6W
Transformer
45 KVA – 208Y to 400V Nema 3R
Weight
~450lbs
