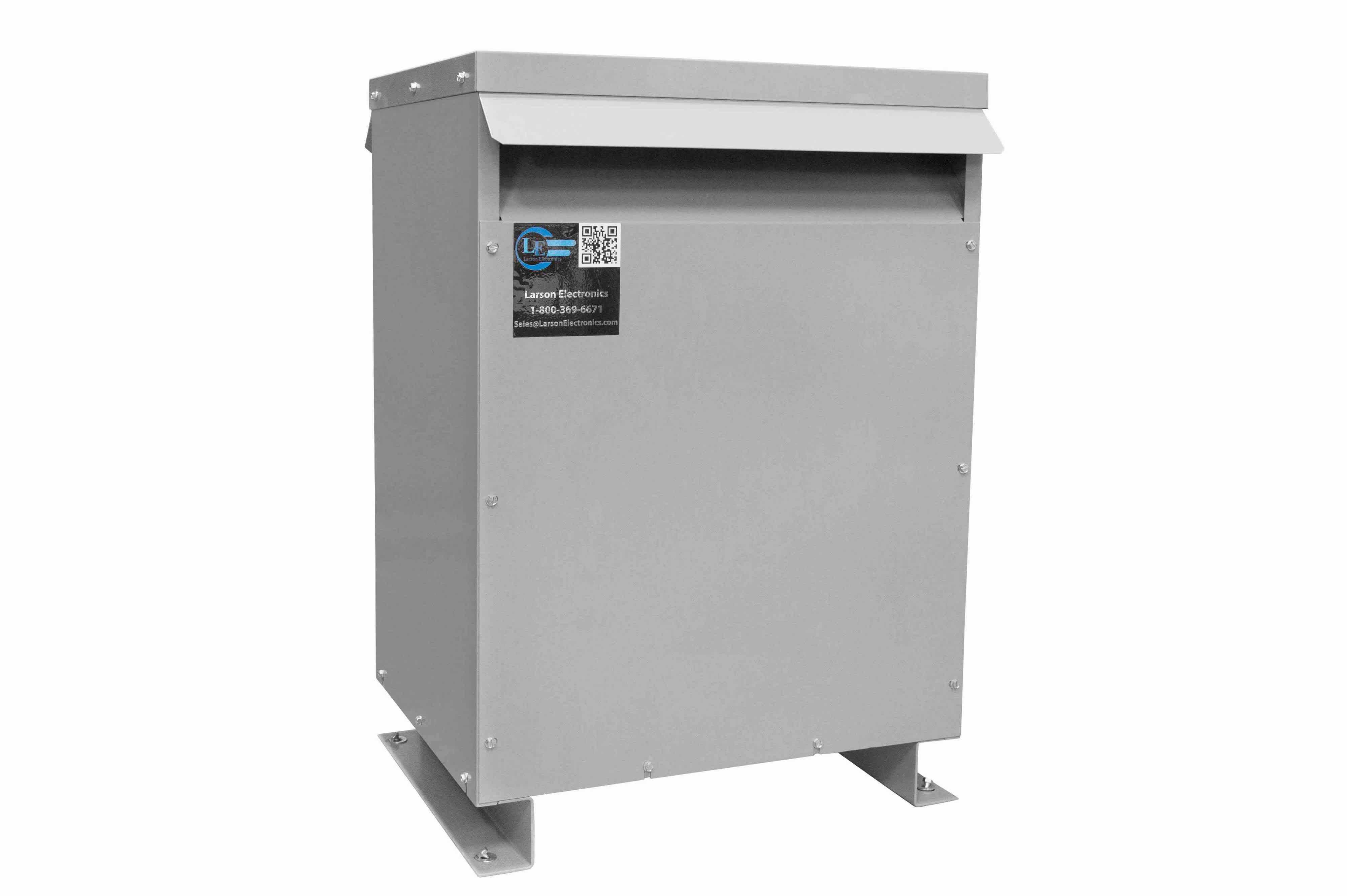

7.5 kVA 3PH Isolation Transformer, 208V Delta Primary, 208Y/120V Wye Secondary, NEMA 3R, Ventilated, 50 Hz, K13

7.5 kVA 3PH Isolation Transformer, 208V Delta Primary, 208Y/120V Wye Secondary, NEMA 3R, Ventilated, 50 Hz, K13 7.5 kVA 3PH Isolation Transformer, 208V Delta Primary, 208Y/120V Wye Secondary, NEMA 3R, Ventilated, 50 Hz, K13 7.5 kVA 3PH Isolation Transformer, 208V Delta Primary, 208Y/120V Wye Secondary, NEMA 3R, Ventilated, 50 Hz, K13 7.5 kVA 3PH Isolation Transformer, 208V Delta Primary, 208Y/120V Wye Secondary, NEMA 3R, Ventilated, 50 Hz, K13 7.5 kVA 3PH Isolation Transformer, 208V Delta Primary, 208Y/120V Wye Secondary, NEMA 3R, Ventilated, 50 Hz, K13 7.5 kVA 3PH Isolation Transformer, 208V Delta Primary, 208Y/120V Wye Secondary, NEMA 3R, Ventilated, 50 Hz, K13 7.5 kVA 3PH Isolation Transformer, 208V Delta Primary, 208Y/120V Wye Secondary, NEMA 3R, Ventilated, 50 Hz, K13 7.5 kVA 3PH Isolation Transformer, 208V Delta Primary, 208Y/120V Wye Secondary, NEMA 3R, Ventilated, 50 Hz, K13 7.5 kVA 3PH Isolation Transformer, 208V Delta Primary, 208Y/120V Wye Secondary, NEMA 3R, Ventilated, 50 Hz, K13 7.5 kVA 3PH Isolation Transformer, 208V Delta Primary, 208Y/120V Wye Secondary, NEMA 3R, Ventilated, 50 Hz, K13 7.5 kVA 3PH Isolation Transformer, 208V Delta Primary, 208Y/120V Wye Secondary, NEMA 3R, Ventilated, 50 Hz, K13 7.5 kVA 3PH Isolation Transformer, 208V Delta Primary, 208Y/120V Wye Secondary, NEMA 3R, Ventilated, 50 Hz, K13
7.5 kVA 3PH Isolation Transformer, 208V Delta Primary, 208Y/120V Wye Secondary, NEMA 3R, Ventilated, 50 Hz, K13 7.5 kVA 3PH Isolation Transformer, 208V Delta Primary, 208Y/120V Wye Secondary, NEMA 3R, Ventilated, 50 Hz, K13 7.5 kVA 3PH Isolation Transformer, 208V Delta Primary, 208Y/120V Wye Secondary, NEMA 3R, Ventilated, 50 Hz, K13 7.5 kVA 3PH Isolation Transformer, 208V Delta Primary, 208Y/120V Wye Secondary, NEMA 3R, Ventilated, 50 Hz, K13 7.5 kVA 3PH Isolation Transformer, 208V Delta Primary, 208Y/120V Wye Secondary, NEMA 3R, Ventilated, 50 Hz, K13 7.5 kVA 3PH Isolation Transformer, 208V Delta Primary, 208Y/120V Wye Secondary, NEMA 3R, Ventilated, 50 Hz, K13 7.5 kVA 3PH Isolation Transformer, 208V Delta Primary, 208Y/120V Wye Secondary, NEMA 3R, Ventilated, 50 Hz, K13 7.5 kVA 3PH Isolation Transformer, 208V Delta Primary, 208Y/120V Wye Secondary, NEMA 3R, Ventilated, 50 Hz, K13 7.5 kVA 3PH Isolation Transformer, 208V Delta Primary, 208Y/120V Wye Secondary, NEMA 3R, Ventilated, 50 Hz, K13 7.5 kVA 3PH Isolation Transformer, 208V Delta Primary, 208Y/120V Wye Secondary, NEMA 3R, Ventilated, 50 Hz, K13 7.5 kVA 3PH Isolation Transformer, 208V Delta Primary, 208Y/120V Wye Secondary, NEMA 3R, Ventilated, 50 Hz, K13 7.5 kVA 3PH Isolation Transformer, 208V Delta Primary, 208Y/120V Wye Secondary, NEMA 3R, Ventilated, 50 Hz, K13
Model:
MT-ISX-3P-208D-7.5KVA-208Y.120-N3R-50HZ-K13
SKU:
MT-ISX-3P-208D-7.5KVA-208Y.120-N3R-50HZ-K13
Availability:
In Stock
Documents:
Spec Sheet
$6,273.58
Estimated price. Final price and availability are subject to confirmation. Contact our sales team for a current quote.
  0 reviews
Delivery
Payment
Support
info@safsale.com

Product Overview

7.5 kVA 3PH Isolation Transformer, 208V Delta Primary, 208Y/120V Wye Secondary, NEMA 3R, Ventilated, 50 Hz, K13 is a product intended for professional commercial and industrial applications.

Key Specifications

  • Transformer Type: Isolation Transformer
  • Transformer Configuration: Dry Type
  • Phase: Three Phase
  • Frequency: 50 Hz
  • Primary Voltage: 208V AC
  • Primary Connection: Delta
  • Capacity: 7.5 KVA
  • Secondary Voltage: 208Y/120V AC
  • Secondary Connection: Wye
  • Knockouts: -

This item is grouped with 65-75 KVA Industrial Transformers.

Before ordering: Verify ratings, dimensions, compatibility, and installation requirements before ordering.

Specifications

Capacity
7.5 KVA
Cooling
Air/Dry
Dimensions
19.37"L x 24.39"W x 25.5"H
Efficiency @ 35% Load
~98%
Enclosure Material
NEMA Type 3R Heavy Duty Ventilated - Steel
FCAN (Above) Taps
-
FCAN (Below) Taps
-
Finish
ANSI 61 Grey
Frequency
50 Hz
Grounding Provisions
Included
Impedance
2.5-6.5% typical
K-Factor
K13
Mounting
Floor
Operating Temperature
-20°C to 70°C
Primary Connection
Delta
Primary Termination (Std)
Terminal Lugs
Secondary Connection
Wye
Secondary Termination (Std)
Terminal Lugs
Shipping Dimensions
48''L x 40''W x 34''H
Shipping Method
Pallet Freight - LTL
Shipping Weight
355 lbs
Sound Level
Meets NEMA ST-20 Standards
Tap %
-
Temperature Rise
150°C
Termination Access
Front Access Cover
Transformer Configuration
Dry Type
Transformer Type
Isolation Transformer
Weight
290 lbs
Winding Material
Aluminum

Technical

Phase
Three Phase
Insulation
220°C
Knockouts
-
Primary Voltage
208V AC
Secondary Voltage
208Y/120V AC
