Model:
MT-PML-R7-1P-GRU-333KVA-SZ-LT-DF-A6-BB-CZ-2B4-M1SKU:
MT-PML-R7-1P-GRU-333KVA-SZ-LT-DF-A6-BB-CZ-2B4-M1Availability:
In StockDocuments:
Spec Sheet
$67,482.36
Estimated price. Final price and availability are subject to confirmation. Contact our sales team for a current quote.
Product Overview

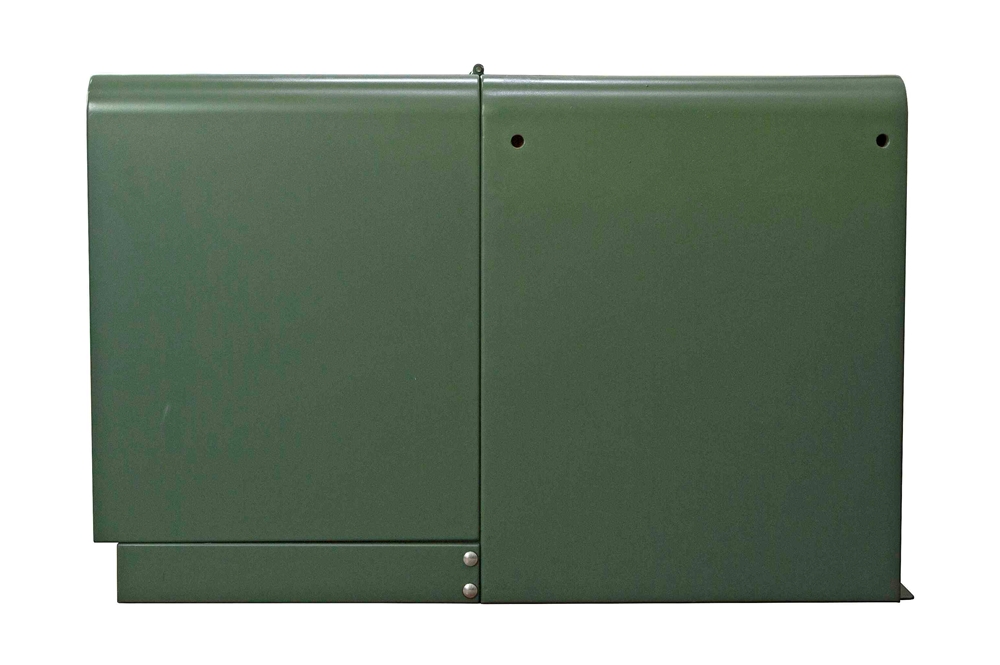

333 KVA Pad Mount Transformer - 15000Y/8660 Grounded Wye Primary, 240/120V Secondary - Biodegradable Fluid /KNAN is a product intended for professional commercial and industrial applications.
Key Specifications
- Transformer Type: Pad Mounted, Compartmental-Type II
- Transformer Configuration: Liquid Filled Pad Mounted
- Transformer Feed Type: Loop Feed
- Polarity: Additive
- Phase: Single Phase (Connects to 3-Phase electrical grid)
- Capacity: 333 KVA
- Vector Group: II6
- Primary Voltage: 15000GrdY/8660
- Primary Voltage Switch: N/A
- Primary Voltage Class: 15 kV Class
This item is grouped with Medium Voltage Pad Mount Transformers.
Before ordering: Verify ratings, dimensions, compatibility, and installation requirements before ordering.
Specifications
Capacity
333 KVA
Cooling Class
KNAN; Self-Cooled
Efficiency
99.20%
Forced Air (Fans)
None
Frequency
60 Hz
Impedance
1.5-60% Typical
Insulation Rating
Class E Insulation - 120°C, 248°F
Load Loss (in watts)*
+/- 3,656W
No Load Loss (in watts)*
+/- 910W
Note
Crated shipping in lieu of palletizing can be done upon request for an additional fee
Polarity
Additive
Primary BIL
95 KV
Primary Bushing Rating
15 kV Class, 95 kV BIL, 200A, Load Break, IEEE 386 Color Red
Primary Connection Qty
(2) Primary Connections for use w/ Elbow Connectors
Primary Connection Type
Dead Front
Primary Parking Stand Qty
(2) Welded Bracket for Installing Accessory Parking Stand Bushings
Primary Phasor
Grounded Wye
Primary Surge Arrestor MCOV Rating
8.4 kVrms
Primary Surge Arrestor Voltage Rating
10 kV Class
Primary Surge Arrestors
(1) High Voltage Elbow Surge Arrestors, Included
Primary Termination
Externally Clamped Well Bushings w/ Removable Studs, 200A Load Break Elbows w/ Inserts
Primary Voltage Class
15 kV Class
Primary Voltage Switch
N/A
Secondary BIL
30 KV
Secondary Phasor
Dual Winding Single Phase
Secondary Voltage Class
1.2 kV Class
Tap %
2.50%
Tap Changer
5-Position Tap Changer, Hot Stick Operable
Tap Changer Switch Location
Front Compartment, High Voltage (HV) Left Side
Tap Changer Switch Rating
200-Amp, 15 kV
Tap Qty
(2) FCAN Above Taps, (2) FCBN Below Taps
Temperature Rise
65°C
Total Load Loss (in watts)*
+/- 4,566W
Transformer Configuration
Liquid Filled Pad Mounted
Transformer Feed Type
Loop Feed
Transformer Type
Pad Mounted, Compartmental-Type II
Vector Group
II6
Technical
Phase
Single Phase (Connects to 3-Phase electrical grid)
Primary Voltage
15000GrdY/8660
Secondary Voltage
120/240 (L-N-L)
