Model:
MTPC-MD-RB-380V-20HP-12HP-N1SKU:
MTPC-MD-RB-380V-20HP-12HP-N1Availability:
In StockDocuments:
Spec Sheet
$3,980.14
Estimated price. Final price and availability are subject to confirmation. Contact our sales team for a current quote.
Product Overview

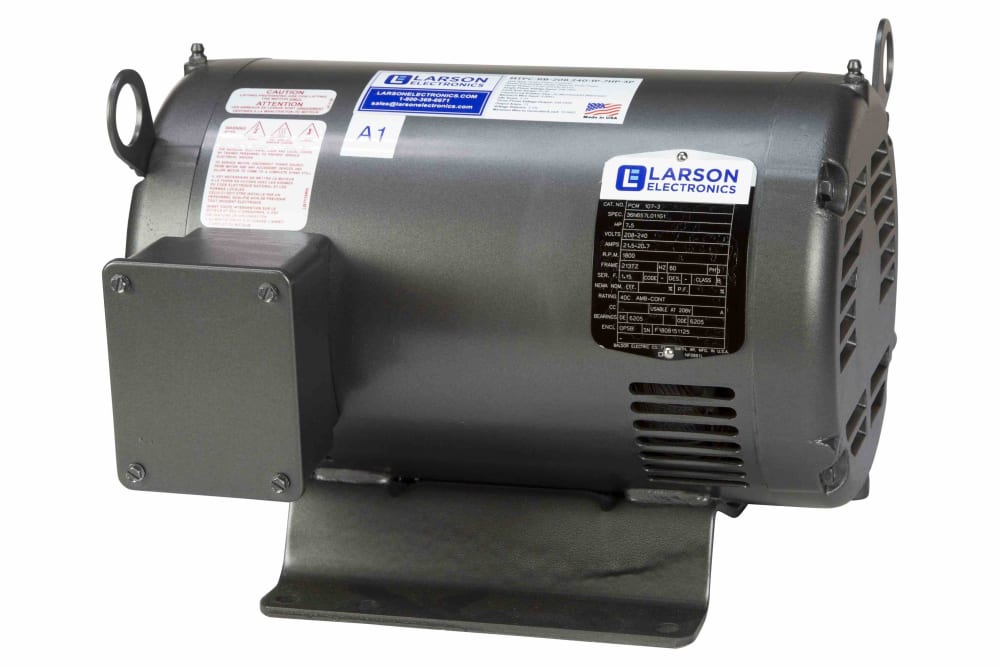

Rotary Phase Converter for 12HP Medium Loads, 380V 1PH to 3PH, 9.9 Amps Output, 20HP Idler, NEMA 1 is a product intended for professional commercial and industrial applications.
Key Specifications
- Unit Type: Rotary Phase Converter
- Phase Conversion: Single Phase to Three Phase
- Kilowatt Rating: 14.9 KW
- Kilo Volt-Amp Rating: 20 KVA
- Idle Motor Horse Power: 20 HP
- Single Phase Voltage Input: 380V
- Minimum Fuse/Circuit Breaker Size: 20
- Maximum Fuse/Circuit Breaker Size: 50
- Minimum Wire (Input) to Converter: 6 AWG
- Minimum Electrical Service Required: 25 KVA
This item is grouped with Single Phase to Three Phase Converters for Medium Motor Loads.
Before ordering: Verify ratings, dimensions, compatibility, and installation requirements before ordering.
Specifications
Color
Natural Gray
Dimensions
-
Idle Amps
-
Idle Motor Horse Power
20 HP
Kilo Volt-Amp Rating
20 KVA
Kilowatt Rating
14.9 KW
Maximum Fuse/Circuit Breaker Size
50
Maximum Output Amps
30.39A
Maximum Resistive Amps
16.2A
Maximum Single Motor Load HP
12 HP
Minimum Electrical Service Required
25 KVA
Minimum Fuse/Circuit Breaker Size
20
Minimum Wire (Input) to Converter
6 AWG
Minimum Wire to Device Load
8 AWG
Optimal Output Amps
9.9A
Phase Conversion
Single Phase to Three Phase
Recommended Combined HP
12 HP
Service Load Type
Medium motor loads
Shipping Dimensions
-
Shipping Weight
- lbs
Single Phase Voltage Input
380V
Three Phase Voltage Output
380
Unit Type
Rotary Phase Converter
Voltage Balance
2-5%
Weight
- lbs
Technical
Form Factor
Rectangular Enclosure, Cylindrical Idler w/ Four Legs
