Model:
MTPC-VHD-RB-690V-3HP-1HP-N1SKU:
MTPC-VHD-RB-690V-3HP-1HP-N1Availability:
In StockDocuments:
Spec Sheet
$2,765.87
Estimated price. Final price and availability are subject to confirmation. Contact our sales team for a current quote.
Product Overview

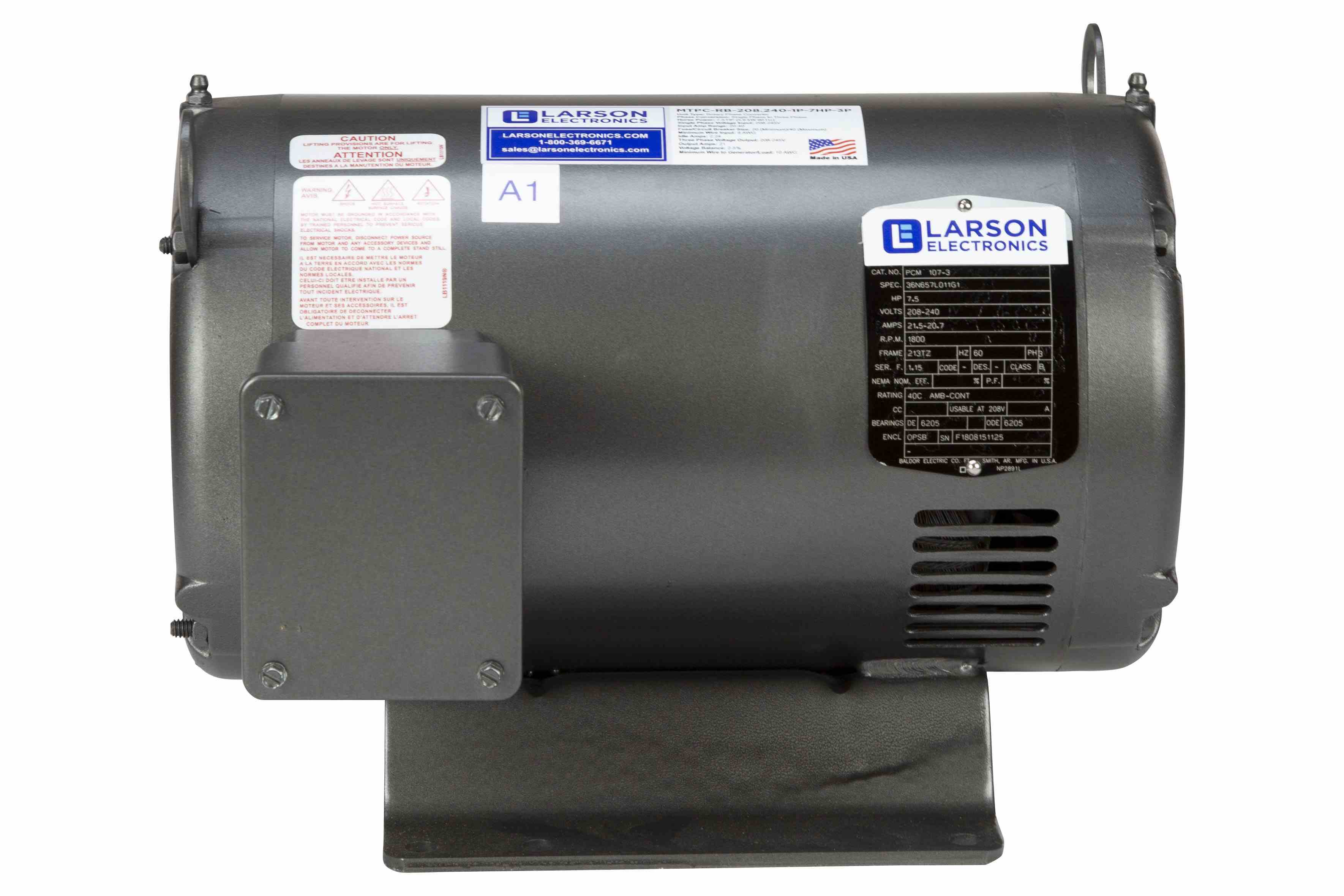

Rotary Phase Converter for 1HP Very Hard Loads, 690V 1PH to 3PH, 0.32 Amps Output, 3HP Idler, NEMA 1 is a product intended for professional commercial and industrial applications.
Key Specifications
- Unit Type: Rotary Phase Converter
- Phase Conversion: Single Phase to Three Phase
- Kilowatt Rating: 2.2 KW
- Kilo Volt-Amp Rating: 3 KVA
- Idle Motor Horse Power: 3 HP
- Single Phase Voltage Input: 690V
- Minimum Fuse/Circuit Breaker Size: 3
- Maximum Fuse/Circuit Breaker Size: 7
- Minimum Wire (Input) to Converter: 14 AWG
- Minimum Electrical Service Required: 5 KVA
This item is grouped with Single Phase to Three Phase Converters for Very Hard Motor Loads.
Before ordering: Verify ratings, dimensions, compatibility, and installation requirements before ordering.
Specifications
Color
Natural Gray
Dimensions
-
Idle Amps
-
Idle Motor Horse Power
3 HP
Kilo Volt-Amp Rating
3 KVA
Kilowatt Rating
2.2 KW
Maximum Fuse/Circuit Breaker Size
7
Maximum Output Amps
1.96A
Maximum Resistive Amps
1.1A
Maximum Single Motor Load HP
1 HP
Minimum Electrical Service Required
5 KVA
Minimum Fuse/Circuit Breaker Size
3
Minimum Wire (Input) to Converter
14 AWG
Minimum Wire to Device Load
12 AWG
Optimal Output Amps
0.32A
Phase Conversion
Single Phase to Three Phase
Recommended Combined HP
1 HP
Service Load Type
Very Hard motor loads
Shipping Dimensions
-
Shipping Weight
- lbs
Single Phase Voltage Input
690V
Three Phase Voltage Output
690
Unit Type
Rotary Phase Converter
Voltage Balance
2-5%
Weight
- lbs
Technical
Form Factor
Rectangular Enclosure, Cylindrical Idler w/ Four Legs
Reviews: 0
There are no reviews for this product.
Questions: 0
No questions about this product.
Catalog Page 1.25 MB
Manual 609.74 KB
Spec Sheet 222.07 KB
Wiring Diagram 1001.21 KB
MSDS 194.95 KB
Shipping Time Map 424.5 KB
