Model:
MTPC-HD-RB-400V-50HP-25HP-N1SKU:
MTPC-HD-RB-400V-50HP-25HP-N1Availability:
In StockDocuments:
Spec Sheet
$14,561.91
Estimated price. Final price and availability are subject to confirmation. Contact our sales team for a current quote.
Product Overview

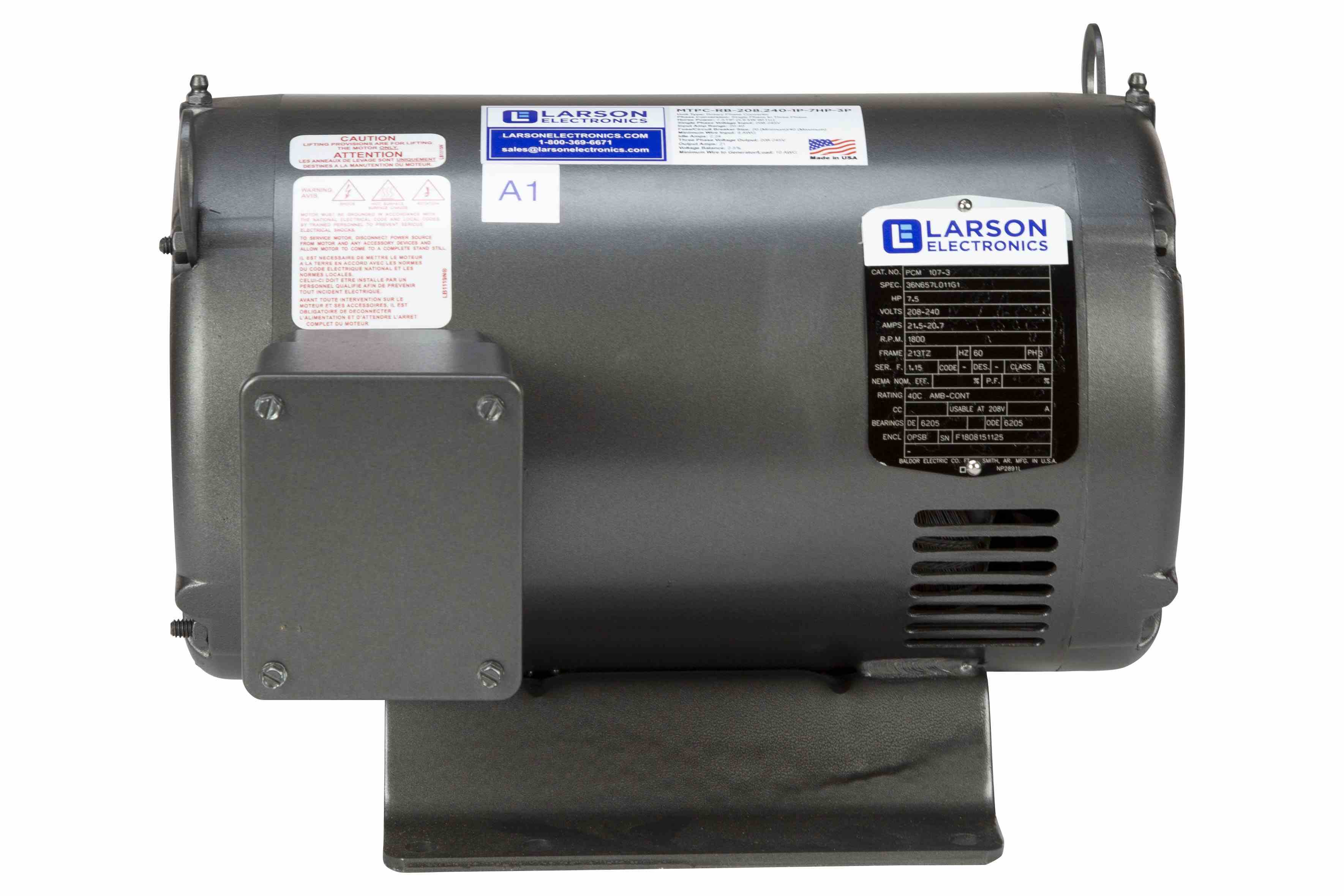

Rotary Phase Converter for 25HP Hard Loads, 400V 1PH to 3PH, 19.63 Amps Output, 50HP Idler, NEMA 1 is a product intended for professional commercial and industrial applications.
Key Specifications
- Unit Type: Rotary Phase Converter
- Phase Conversion: Single Phase to Three Phase
- Kilowatt Rating: 37.5 KW
- Kilo Volt-Amp Rating: 50 KVA
- Idle Motor Horse Power: 50 HP
- Single Phase Voltage Input: 400V
- Minimum Fuse/Circuit Breaker Size: 40
- Maximum Fuse/Circuit Breaker Size: 125
- Minimum Wire (Input) to Converter: 2 AWG
- Minimum Electrical Service Required: 65 KVA
This item is grouped with Single Phase to Three Phase Converters for Hard Motor Loads.
Before ordering: Verify ratings, dimensions, compatibility, and installation requirements before ordering.
Specifications
Color
Natural Gray
Dimensions
-
Idle Amps
-
Idle Motor Horse Power
50 HP
Kilo Volt-Amp Rating
50 KVA
Kilowatt Rating
37.5 KW
Maximum Fuse/Circuit Breaker Size
125
Maximum Output Amps
70.4A
Maximum Resistive Amps
38.5A
Maximum Single Motor Load HP
25 HP
Minimum Electrical Service Required
65 KVA
Minimum Fuse/Circuit Breaker Size
40
Minimum Wire (Input) to Converter
2 AWG
Minimum Wire to Device Load
3 AWG
Optimal Output Amps
19.63A
Phase Conversion
Single Phase to Three Phase
Recommended Combined HP
25 HP
Service Load Type
Hard motor loads
Shipping Dimensions
-
Shipping Weight
- lbs
Single Phase Voltage Input
400V
Three Phase Voltage Output
400
Unit Type
Rotary Phase Converter
Voltage Balance
2-5%
Weight
- lbs
Technical
Form Factor
Rectangular Enclosure, Cylindrical Idler w/ Four Legs
Reviews: 0
There are no reviews for this product.
Questions: 0
No questions about this product.
Spec Sheet 222.08 KB
MSDS 194.95 KB
Manual 609.74 KB
Wiring Diagram 1001.21 KB
Catalog Page 1.25 MB
Shipping Time Map 424.5 KB
