Model:
MTPC-LD-RB-600V-10HP-7.5HP-N1SKU:
MTPC-LD-RB-600V-10HP-7.5HP-N1Availability:
In StockDocuments:
Spec Sheet
$4,173.16
Estimated price. Final price and availability are subject to confirmation. Contact our sales team for a current quote.
Product Overview

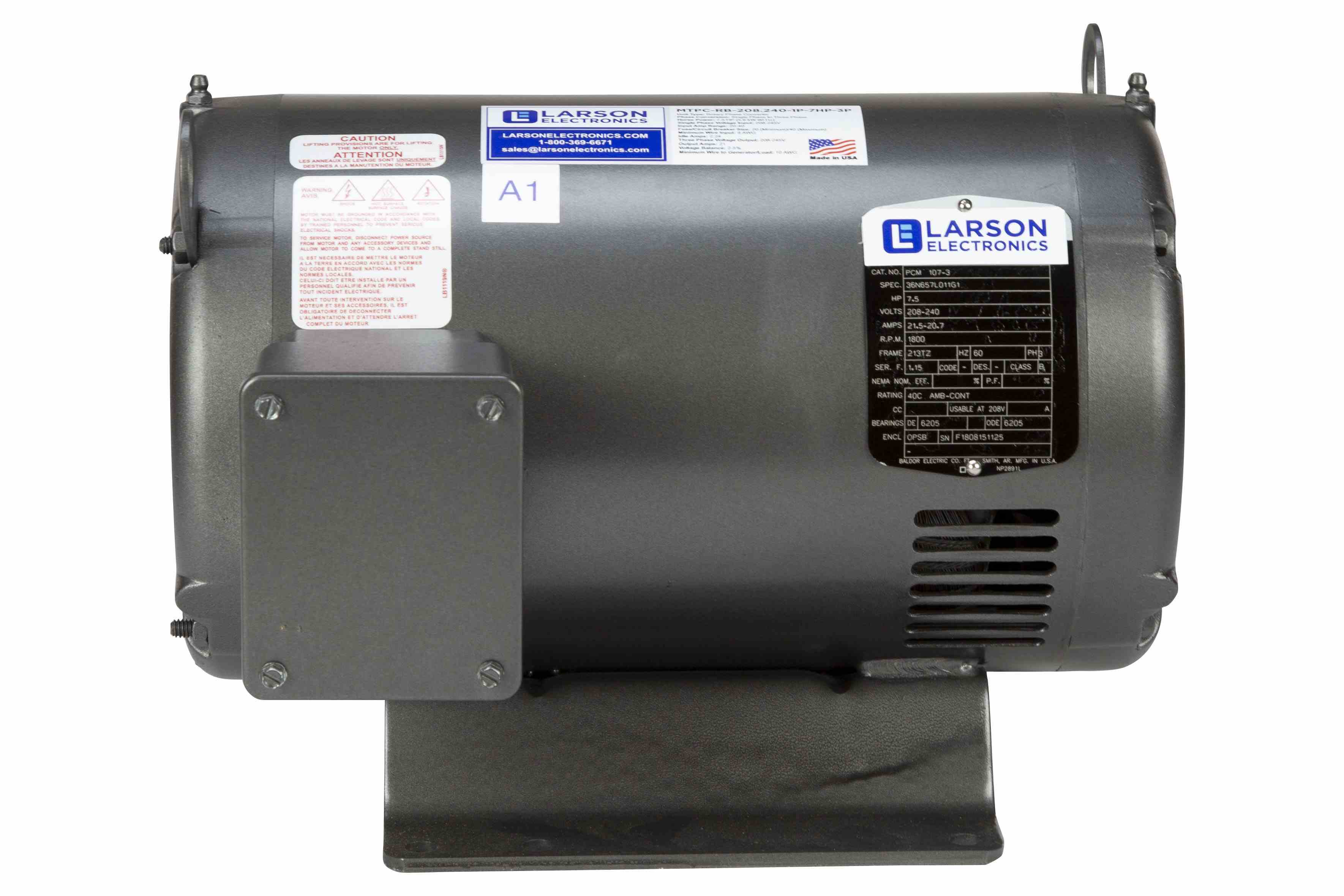

Rotary Phase Converter for 7.5HP Easy Loads, 600V 1PH to 3PH, 3.92 Amps Output, 10HP Idler, NEMA 1 is a product intended for professional commercial and industrial applications.
Key Specifications
- Unit Type: Rotary Phase Converter
- Phase Conversion: Single Phase to Three Phase
- Kilowatt Rating: 7.5 KW
- Kilo Volt-Amp Rating: 10 KVA
- Idle Motor Horse Power: 10 HP
- Single Phase Voltage Input: 600V
- Minimum Fuse/Circuit Breaker Size: 10
- Maximum Fuse/Circuit Breaker Size: 25
- Minimum Wire (Input) to Converter: 10 AWG
- Minimum Electrical Service Required: 15 KVA
This item is grouped with Single Phase to Three Phase Converters for Easy Motor Loads.
Before ordering: Verify ratings, dimensions, compatibility, and installation requirements before ordering.
Specifications
Color
Natural Gray
Dimensions
-
Idle Amps
-
Idle Motor Horse Power
10 HP
Kilo Volt-Amp Rating
10 KVA
Kilowatt Rating
7.5 KW
Maximum Fuse/Circuit Breaker Size
25
Maximum Output Amps
10.78A
Maximum Resistive Amps
5.1A
Maximum Single Motor Load HP
7.5 HP
Minimum Electrical Service Required
15 KVA
Minimum Fuse/Circuit Breaker Size
10
Minimum Wire (Input) to Converter
10 AWG
Minimum Wire to Device Load
10 AWG
Optimal Output Amps
3.92A
Phase Conversion
Single Phase to Three Phase
Recommended Combined HP
7.5 HP
Service Load Type
Easy motor loads
Shipping Dimensions
-
Shipping Weight
- lbs
Single Phase Voltage Input
600V
Three Phase Voltage Output
600
Unit Type
Rotary Phase Converter
Voltage Balance
2-5%
Weight
- lbs
Technical
Form Factor
Rectangular Enclosure, Cylindrical Idler w/ Four Legs
Reviews: 0
There are no reviews for this product.
Questions: 0
No questions about this product.
Catalog Page 1.25 MB
Manual 609.74 KB
Spec Sheet 222.08 KB
Wiring Diagram 1001.21 KB
MSDS 194.95 KB
Shipping Time Map 424.5 KB
