Choosing a PoE Network Switch for a Security Camera System

A network switch connects IP cameras, recorders, and viewing computers so they can exchange data on a local network. A Power over Ethernet, or PoE, switch can also supply compatible cameras through the same cable used for data. Choosing it correctly means checking two separate requirements: how much traffic it can carry and how much electrical power it can deliver.

The switch is part of the recording path, but it does not normally record video, recognize faces, or create a multi-camera display. Those functions belong to cameras, analytics software, recorders, or viewing applications. A dependable system requires the entire path to work together.

What a switch does with camera traffic

A typical Layer 2 Ethernet switch learns which device addresses are reachable through its ports and forwards frames toward the appropriate destination. It uses MAC addresses for this local forwarding. Broadcast traffic and some other traffic may reach multiple ports, so it is too simplistic to say every frame always goes only to a single intended device.

The camera can send its stream through the switch to an NVR or a server running video management software. The same network may carry control commands, event notifications, and audio when the equipment supports those functions. The switch transports the traffic; it does not interpret the scene to determine what happened.

A Layer 3 switch can also route traffic between IP networks when configured to do so. That does not make every switch an internet router, firewall, or remote-access gateway. Define those roles separately in the network design.

Which devices can connect

Common network devices include IP cameras, NVRs, recording servers, operator workstations, and access-control equipment. Printers and other office devices may share the broader network, but they are not mandatory surveillance components. Separating camera traffic from unrelated office activity can simplify access control and troubleshooting.

Camera shape does not determine network compatibility. A bullet, dome, panoramic, or pan-tilt-zoom camera can be an IP device if it has the appropriate network interface. Conversely, conventional CVBS, AHD, HD-CVI, and HD-TVI outputs do not connect directly to an ordinary Ethernet switch. They require a compatible DVR or encoder before their video becomes IP traffic.

Some installations use the switching hardware built into a PoE NVR or router. A simple direct connection may not require a separate standalone switch. The important question is whether the design has the necessary ports, forwarding capacity, power, and security controls, not whether every system contains an additional box labeled switch.

Layer 2, Layer 3, and management options

OSI layers describe networking functions, not seven grades of surveillance quality. Layer 2 switching handles local Ethernet forwarding. Layer 3 routing connects IP subnets. Physical distance alone does not determine which layer is needed; the logical network design and the chosen transport links matter.

An unmanaged switch offers basic connectivity with little or no user configuration. It can suit a small, uncomplicated network, but provides limited visibility and control. A smart or lightly managed switch typically adds a selected set of features such as VLAN configuration and basic monitoring. The exact meaning of smart varies by manufacturer.

A fully managed switch may provide more extensive VLANs, access controls, port statistics, event logs, monitoring, and redundancy features. These are useful when diagnosing intermittent video or separating cameras from other devices. Check the actual feature list: a managed switch is not automatically a Layer 3 switch, and an unmanaged unit does not offer the same segmentation controls.

Count ports and leave room for growth

Start with the planned cameras, then add ports for the recorder uplink, other connected devices, and a reasonable expansion allowance. Four-, eight-, sixteen-, and twenty-four-port models are common examples rather than boundaries between home and professional use. A small critical installation may need management features that a larger simple installation does not.

Check how the manufacturer counts uplink ports. Some are additional ports, while others share resources or replace another connection. Fiber uplinks may require compatible transceivers. Confirm the intended topology so the camera count does not consume every port needed to reach the recorder.

Size bandwidth separately from power

Port speed is measured in bits per second, while PoE capacity is measured in watts. A 100 Mbps connection is not a 100-watt power source. Look at the camera-facing links, aggregate uplinks, switching capacity, and the recorder's own incoming bandwidth limit.

For an illustrative calculation, sixteen cameras sending 8 Mbps each create 128 Mbps of video traffic before overhead and additional streams. A 100 Mbps recorder uplink would be inadequate for that load. Allow for live viewing, playback, audio, events, and peaks; do not size the network solely from a quiet scene's measured bitrate.

Gigabit uplinks are a common choice for multiple-camera systems, but larger installations may require more. A faster switch cannot correct an overloaded recorder, a damaged cable, or an undersized wireless bridge. Find the narrowest link in the actual video path.

Understand the PoE standard and budget

The switch is the power sourcing equipment, or PSE, and the camera is the powered device, or PD. Standards-based PoE checks for a compatible device before supplying power. Passive power injectors and proprietary arrangements may behave differently and must not be assumed interchangeable with IEEE PoE.

These source-power values are documented in Cisco's PoE standards table. Power available at the camera is lower because the cable consumes part of the budget. Check the camera's required standard and power class, the per-port capability, and the switch's total available PoE budget.

A switch with eight PoE+ ports does not necessarily supply 30 watts to all eight simultaneously. Include peak consumption from infrared emitters, heaters, motors, and startup behavior. If the budget is insufficient, a port may be denied power or a device may restart; do not assume the switch merely lowers every camera's voltage in a predictable way.

PoE types also differ in the pairs used to deliver power. That does not mean a modern Ethernet installation should use a two-pair cable because some PoE modes energize two pairs. Use the complete category-rated cable and terminations required by the Ethernet speed and PoE application.

Cabling and installation environment

Use properly specified copper network cable and verify termination quality. For ordinary structured copper Ethernet, the familiar channel limit is 100 meters, typically including up to 90 meters of permanent cabling and 10 meters of patch cords. Fluke Networks explains this distinction. Specialized extended-reach modes have separate speed and equipment limitations.

Auto MDI/MDI-X can simplify cable connections on supported ports, but it does not repair poor wiring or solve a power shortfall. For longer links, evaluate supported fiber or other engineered transport, along with local power for the remote equipment.

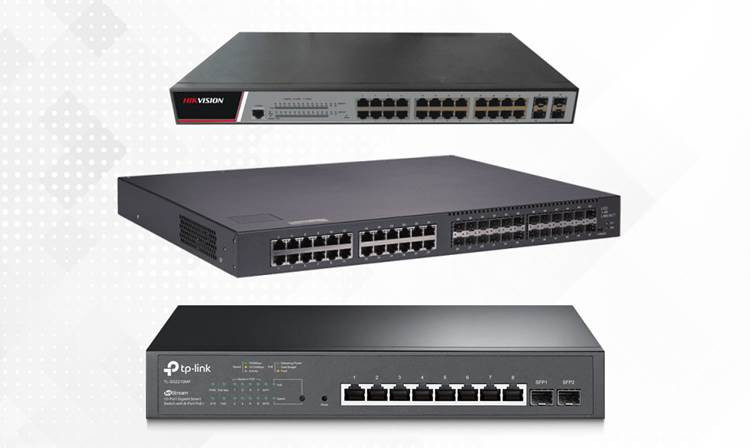

Choose desktop, rackmount, or DIN-rail hardware for the actual installation. Temperature range, ventilation, moisture, dust, power supply, and surge exposure matter. DIN-rail mounting does not imply weather resistance, and an IP66 rating is not a universal legal requirement for all outdoor switches. Use an appropriately rated enclosure and equipment combination for the site.

Commission the complete system

Verify all cameras simultaneously at their intended recording settings, then test nighttime power demand, playback, and recovery after a controlled interruption. Save the switch configuration and document port assignments. On managed equipment, review error counters, negotiated speeds, and power allocation when troubleshooting dropped video.

Use secure administration and a defined remote-access path; a switch alone does not provide safe internet viewing. Compare IP cameras and recording systems alongside the switch requirements so bandwidth, power, storage, and management capacity match the same design.
