Model:
IND-WPCS-CS-3PS-SG-ESTP.LCK-415V-16A-R1SKU:
IND-WPCS-CS-3PS-SG-ESTP.LCK-415V-16A-R1Availability:
In StockDocuments:
Spec Sheet
$1,098.58
Estimated price. Final price and availability are subject to confirmation. Contact our sales team for a current quote.
Product Overview

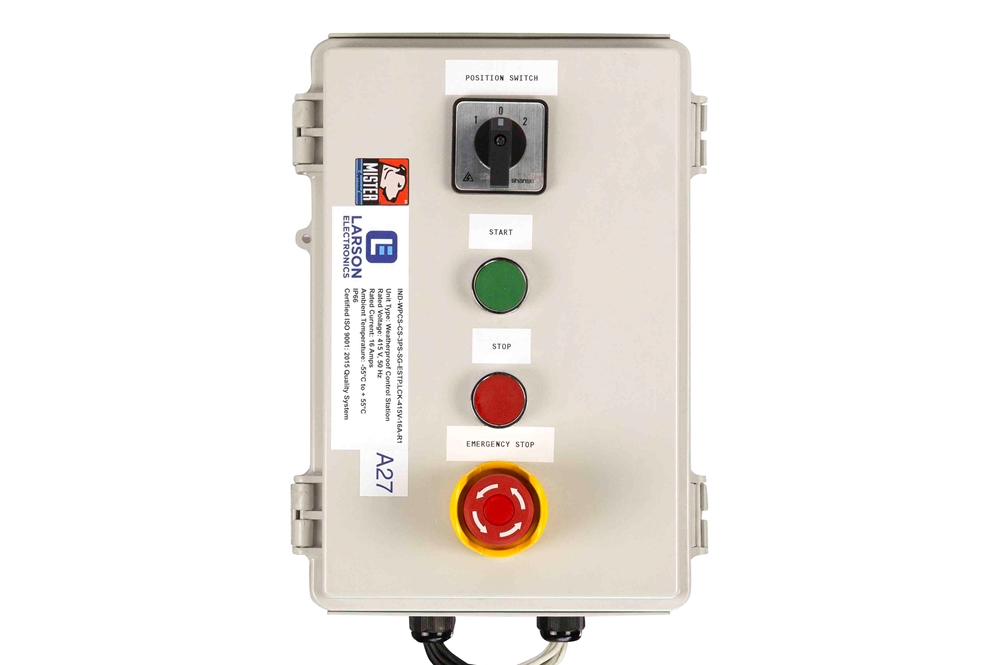

Weatherproof Control Station - (1) 3-Position Selector Switch - (2) PBs, (1) Lockable E-Stop - 415V, 50Hz - IP66 is a product intended for professional commercial and industrial applications.
Key Specifications
- Voltage: The IND-WPCS-CS-3PS-SG-ESTP.LCK-415V-16A-R1 has an operating voltage of 415 V, 50 Hz.
- Wiring/Mounting: The IND-WPCS-CS-3PS-SG-ESTP.LCK-415V-16A-R1 features two cable entries. Each entry is equipped with a M25 plastic cable gland and can accommodate cables with a diameter of between 0.31" to 0.67" (8-17mm). The IND-WPCS-CS-3PS-SG-ESTP.LCK-415V-16A-R1 has ten Phoenix 2.5mm terminals with internal wiring on the inside. This weatherproof control station measures 11.8" x 7.87" x 3.58" and can be surface mounted.
- Materials: The IND-WPCS-CS-3PS-SG-ESTP.LCK-415V-16A-R1 is built from carbon steel that is 1.5 mm thick. The enclosure is powder coated with a gray finish for durability and corrosion resistance.
- Applications: Situations requiring a weatherproof control station.
This item is grouped with Industrial Isolator and Disconnect Switches.
Before ordering: Verify ratings, dimensions, compatibility, and installation requirements before ordering.
Specifications
Applications
Situations requiring a weatherproof control station.
Materials
The IND-WPCS-CS-3PS-SG-ESTP.LCK-415V-16A-R1 is built from carbon steel that is 1.5 mm thick. The enclosure is powder coated with a gray finish for durability and corrosion resistance.
Voltage
The IND-WPCS-CS-3PS-SG-ESTP.LCK-415V-16A-R1 has an operating voltage of 415 V, 50 Hz.
Wiring/Mounting
The IND-WPCS-CS-3PS-SG-ESTP.LCK-415V-16A-R1 features two cable entries. Each entry is equipped with a M25 plastic cable gland and can accommodate cables with a diameter of between 0.31" to 0.67" (8-17mm). The IND-WPCS-CS-3PS-SG-ESTP.LCK-415V-16A-R1 has ten Phoenix 2.5mm terminals with internal wiring on the inside. This weatherproof control station measures 11.8" x 7.87" x 3.58" and can be surface mounted.
