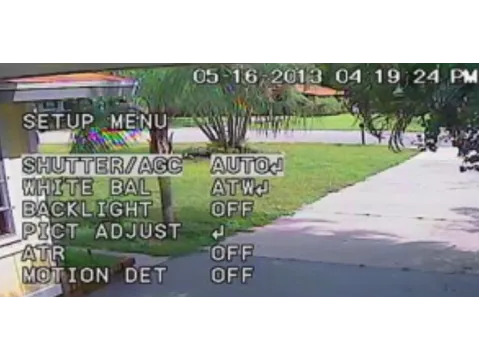

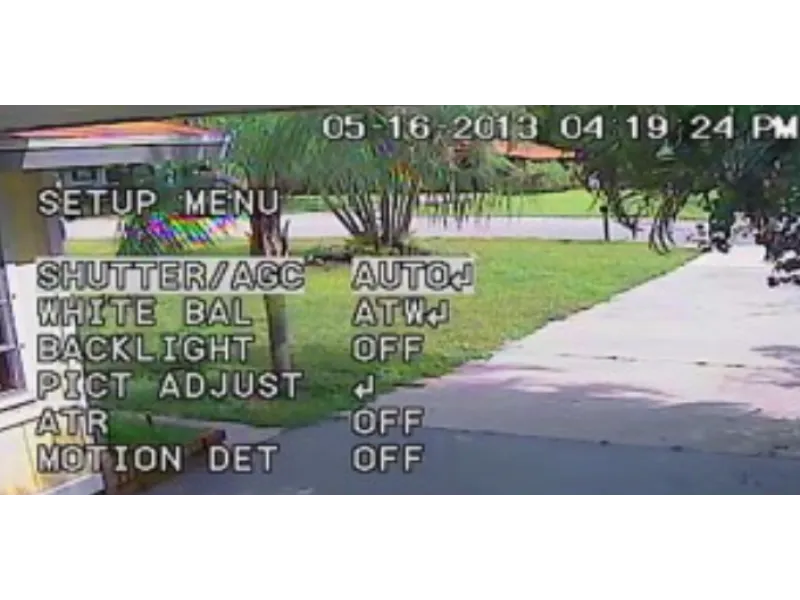

What Is the OSD Menu in Surveillance Cameras?

Optimizing Surveillance Cameras Using the OSD Menu

Surveillance cameras often fail to deliver optimal video quality due to improper settings. The OSD (On-Screen Display) menu provides users with advanced customization options to fine-tune their cameras for different environments, such as indoor spaces and outdoor areas with varying light conditions.

Key OSD Menu Settings

1. Shutter Speed (SHUTTER):

• Determines how quickly the electronic shutter operates.
• Options range from 1/50 to 1/120 or higher.
• Higher shutter speeds are ideal for well-lit environments, while lower speeds capture more light in dim conditions.

2. Automatic Gain Control (AGC):

• Adjusts signal levels automatically based on ambient light.
• Compensates for overexposure or underexposure.
• Available as stepwise or continuous adjustment.

3. Dynamic Range Adjustment (D-WDR):

• Balances brightness and contrast in scenes with mixed lighting.
• Typical settings include INDOOR and OUTDOOR for tailored adjustments.

4. Highlight Compensation (HLC):

• Reduces glare from direct light sources, such as headlights or flashlights, by masking overexposed areas.

Color Balance and Noise Reduction

Color Accuracy Settings:

• ATW (Auto-Tracking White Balance): Continuously adjusts to changing light conditions.
• AWC (Auto White Balance Control): Sets balance once and adjusts when lighting changes.
• Manual Mode: For precise control, ideal in controlled lighting environments.

Noise Reduction (DNR):

• Reduces video noise in low-light scenarios.
• Ensures cleaner images, especially at night.

Day/Night Mode for 24/7 Surveillance

Day/Night Settings (DAY/NIGHT):

• AUTO Mode: Automatically switches between day and night settings.
• Enhances image quality by reducing noise and adjusting IR illumination.

Infrared Support:

• Configurations for IR compensation to reduce glare and overexposure from infrared lights.

Best Practices for OSD Configuration

1. Environmental Assessment: Tailor settings to the specific environment—consider lighting variations and weather conditions.
2. Night-Time Optimization: Enable DNR and adjust DAY/NIGHT mode to ensure clear recordings.
3. Regular Adjustments: Recalibrate settings when lighting or environmental factors change, such as new light fixtures or seasonal variations.

Conclusion

Leveraging the OSD menu ensures your surveillance cameras provide clear, accurate footage regardless of lighting conditions. Proper configuration not only enhances video quality but also maximizes the efficiency of your security system. Take the time to adjust your camera settings to align with your unique surveillance needs.
