Surveillance Cameras: Outdoor, Indoor, and Key Features
Surveillance cameras are essential for transforming optical images into electrical signals, enabling real-time monitoring and recording for enhanced security. These systems come in two primary types: analog and IP (network) cameras.
While analog cameras transmit video via coaxial cables, IP cameras function as network devices, capable of transmitting data over the internet or local networks.
Types of Surveillance Cameras

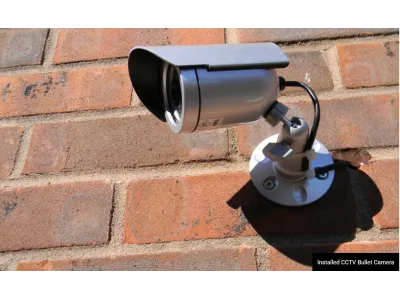

Outdoor Surveillance Cameras
Outdoor cameras are designed to withstand harsh environments and require:
- Dust and water protection: Minimum IP66 rating.
- Temperature resistance: Some models include heating or cooling systems.
- Anti-vandal features: Durable housings to protect against intentional damage.
Outdoor installations may face unique challenges like extreme weather conditions, falling debris, or vandalism, making robust and secure mounting solutions critical.
Indoor Surveillance Cameras
Indoor cameras are widely used for homes, offices, and public spaces. Common designs include:

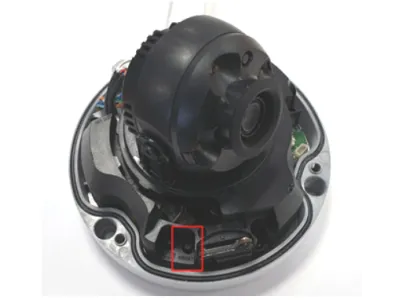

Dome Cameras:
- Sleek design minimizes disruption to interior aesthetics.
- Easily installed on ceilings or walls with concealed wiring.
Cylinder Cameras: Offer adjustable focus and are ideal for targeted areas.
Miniature Cameras: Perfect for discreet monitoring or hidden installations.
Key Features of Surveillance Cameras
1. Resolution and Clarity
- Standard options range from 2MP (1080p) to 8MP (4K), with higher resolutions offering greater detail.
2. Light Sensitivity (Lux Rating)
- Indicates the minimum illumination required for operation. Lower lux ratings mean better performance in low-light conditions.
3. Signal-to-Noise Ratio (S/N)
- A higher ratio (>45 dB) ensures clear images with minimal noise.
4. Automatic Features:
- Auto-Iris (AR): Adjusts to changing light conditions.
- Electronic Shutter (ES): Controls light exposure for clearer images.
- Backlight Compensation (BLC): Prevents shadows when viewing against bright light.
5. Infrared (IR) Capabilities
- Essential for night vision, enabling monitoring in complete darkness.
6. Weather and Damage Protection
- Outdoor cameras should have robust housings for protection against weather and vandalism.
Choosing the Right Camera for Your Needs
- Environment: Indoor or outdoor? Ensure appropriate IP ratings for weather resistance.
- Purpose: Identify the goal (e.g., general monitoring, facial recognition, license plate reading).
- Budget: Analog cameras are typically more affordable, while IP cameras offer scalability and advanced features.
- Connectivity: Decide between wired, wireless, or hybrid systems based on infrastructure and ease of installation.
Conclusion
Surveillance cameras are a cornerstone of modern security systems, offering diverse options for various needs. Understanding the types, features, and installation requirements ensures you choose the right system for your environment.
Investing in quality cameras and proper installation not only enhances security but also provides peace of mind, whether at home, in the office, or outdoors.
Guide 23/10/2026
5
How Security Cameras Work: Sensors, Video Signals, Networks, and Night Vision
A security camera turns light from a scene into a video signal. The surrounding system transports that signal, displays it, and preserves recordings when storage is configured. Understanding those separate jobs helps you choose equipment that fits the location instead of expecting the camera alone t..
Read article
Guide 23/10/2026
5
Connecting Security Cameras to Monitors, TVs, Computers, and Multiple Displays
Security video can be viewed on a dedicated monitor, a television, a computer, a tablet, or a phone. The connection method depends on the signal the camera produces and the equipment that receives it. A connector that physically fits does not necessarily carry a compatible signal.
Before buying a sc..
Read article
Guide 23/10/2026
5
Office Video Surveillance: Camera Selection, Storage, Privacy, and Installation
An office surveillance system should answer a practical question: what do you need to see, when do you need to see it, and what will you do with the recording? A camera that gives a useful overview of a lobby may be unsuitable for identifying someone at a distant doorway. A convenient phone app does..
Read article
Guide 23/10/2026
6
Comparing Security Cameras from Chinese Manufacturers: Features and Specification Checks
A security camera can support monitoring at a home, garage, office, warehouse, school, or industrial site. Choosing one by brand, price, or country of manufacture alone is not enough. The camera must provide the right view, preserve useful detail under the actual lighting, connect to a supported rec..
Read article
Guide 23/10/2026
6
Home IP Cameras: Eight Early Designs and Lessons in Easy Remote Access
A home or small-office network camera should be easy to install, easy to view, and able to preserve the footage its owner actually needs. Compact size matters, but a small camera is of limited use if setup requires obscure router changes or if recordings cannot be retrieved after an incident. Conven..
Read article
Guide 23/10/2026
6
Choosing IP Cameras: Model Examples, Optics, Storage, and Installation
Choosing an IP camera starts with a scene and a task. A camera that gives a useful overview of a room may not show a readable license plate across a parking lot. A model that works well indoors may fail outdoors because of moisture, temperature, corrosion, or poor cable protection. Resolution, lens ..
Read article
Guide 23/10/2026
6
Body-Worn Cameras: Four Historical Designs and Evidence Management Lessons
A body-worn camera combines a small video recorder, a microphone, a battery, and an attachment for clothing or equipment. It can document an employee's interaction with a customer, a security patrol, a delivery, or a law-enforcement encounter. Unlike a fixed camera, it travels with its wearer and ca..
Read article
Guide 23/10/2026
5

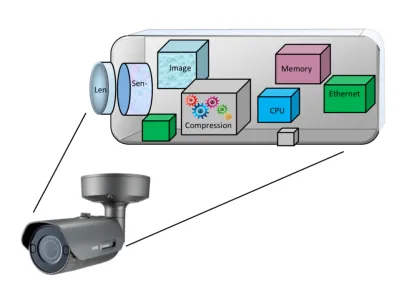

What Is an IP Camera? Imaging, Network Protocols, Storage, and Camera Types
An IP camera combines an imaging device with a small networked computer. It captures a scene, processes the image, compresses the video, and sends data using Internet Protocol. The system includes a lens, an image sensor, processing and encoding functions, memory, and a network interface. Several of..
Read article
Guide 23/10/2026
6

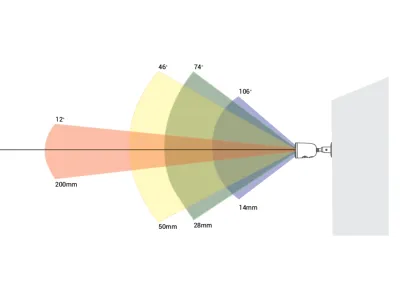

How to Choose Security Camera Resolution: Pixels, Lenses, and Real Detail
More megapixels can help a security camera capture useful detail, but they do not guarantee a readable face or license plate. A wide lens, poor lighting, motion blur, an unsuitable viewing angle, or aggressive compression can defeat a high-resolution sensor. Conversely, a well-positioned 1080p came..
Read article
Guide 23/10/2026
5
How Outdoor Security Cameras Work: Imaging, Weather Protection, and Recording
An outdoor security camera turns light from a scene into a video signal, processes that image, and sends or saves it for viewing. Its basic imaging process resembles an indoor camera's, but the installation must also handle rain, dust, temperature changes, sunlight, darkness, and exposed cable conn..
Read article
Guide 23/10/2026
7
Comparing IP Cameras by Price and Performance: A Practical Scoring Method
IP cameras vary widely in price, image performance, environmental protection, and software features. A weighted comparison can make those differences easier to discuss, but it cannot turn a specification sheet into a complete measure of quality. The starting point is the job each camera must perform..
Read article
Guide 23/10/2026
6

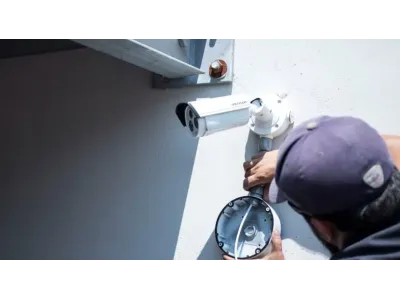

How to Connect an IP Security Camera: Planning, Wiring, and Setup
A small camera system can help you check an entrance, review an incident, or keep an eye on pets while you are away. Connecting it successfully involves more than making a live picture appear. The camera needs suitable power, a reliable network path, secure credentials, and a recording destination t..
Read article
Guide 23/10/2026
8
Choosing Outdoor Security Cameras: Protection, Coverage, Storage, and Model Examples
An outdoor camera should remain usable in the site's weather and produce the detail needed at the right location, both during the day and after dark. The best choice depends on the task: a yard overview, an entrance image, a gate approach, and a parking-lot investigation may require different views ..
Read article
Guide 23/10/2026
7
Choosing a Surveillance Microphone: Speech Quality, Compatibility, and Recording Rules
A microphone can add useful context to a security recording when audio collection is appropriate and lawful. It may clarify a call for help, a conversation at an authorized service point, or an unusual sound associated with an incident. It is not automatically as necessary as the camera, and it shou..
Read article
Guide 23/10/2026
6
Outdoor Analog or IP Cameras: Coverage, Wiring, Night Images, and Storage
An outdoor surveillance system should answer a specific question: do you need to see that someone entered a yard, identify a person at a doorway, read a vehicle plate, or follow activity across a parking lot? These are different imaging tasks. Buying a camera and mounting it high on a wall does not ..
Read article
Guide 23/10/2026
7
Connecting a Hikvision Camera Microphone: Audio, Network, and Remote Access
Video shows where an incident happened, but useful sounds may explain what the picture leaves out. A call for help, breaking glass, or a conversation can add context to an authorized security recording. Adding a microphone to a compatible Hikvision camera or recorder therefore starts with two questi..
Read article
Guide 23/10/2026
7
Surveillance Memory Cards: Calculate Endurance, Capacity, and Write Speed
A security camera can write video for hours or days without stopping, then overwrite its oldest recordings and begin again. That workload differs from occasional photographs or short clips. A suitable memory card must have enough usable capacity, sustained write performance, and documented endurance..
Read article
Guide 23/10/2026
7
Indoor Security Camera Field of View: Coverage, Detail, and Recording
An indoor camera can show a whole room yet provide too little detail to recognize a person at its far end. Another camera may capture an excellent doorway view while missing most of the room. Field of view is the link between these two outcomes: it determines how much space enters the image and how ..
Read article
Guide 23/10/2026
6
Choosing a Security Camera: Coverage, Image Quality, Power, and Storage
Choosing a security camera begins with a practical question: what must the recording let you see? A camera that provides an overview of a room may not show a face clearly at the doorway. A camera that performs well in daylight may struggle with a moving person after dark. The right choice connects c..
Read article
Guide 23/10/2026
6
Motorized Camera Lenses: Four Archived Zoom and Autofocus Tests
A motorized lens lets an installer adjust a security camera's field of view and focus without physically turning rings on the lens. That can be useful when a camera is mounted high above the ground or in another difficult-to-reach location. The feature is common in PTZ designs and also appears in fi..
Read article
Guide 23/10/2026
5
Six Early Four-Megapixel Bullet Cameras: An Archived Feature Comparison
Four-megapixel bullet cameras became an attractive alternative to two-megapixel models as sensors, processors, and compression improved. This archived review captures that transition through six examples with varifocal lenses. It preserves the original feature comparisons while separating historical..
Read article
Guide 23/10/2026
5
Six Fisheye Cameras: An Archived Comparison of Coverage and Dewarping
A fisheye camera can provide a broad view of a room from one mounting point, but a 360-degree view does not automatically provide useful identification detail everywhere. This archived comparison examines six cameras and the differences that mattered in the original evaluation: edge sharpness, dewar..
Read article
Guide 23/10/2026
8
Security Camera Image Sensors: CMOS, Pixel Size, Low Light, and WDR
The image sensor is a central part of a security camera, but its name or megapixel count cannot tell you how the finished camera will perform. The lens, exposure settings, lighting, image processing, compression, and installation all contribute to the recording. Evaluate the sensor as part of that c..
Read article
Guide 23/10/2026
8

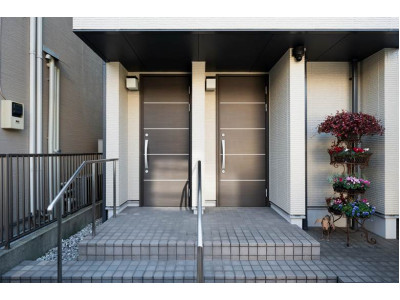

Where to Install Security Cameras: Entrances, Parking Areas, and Interior Routes
